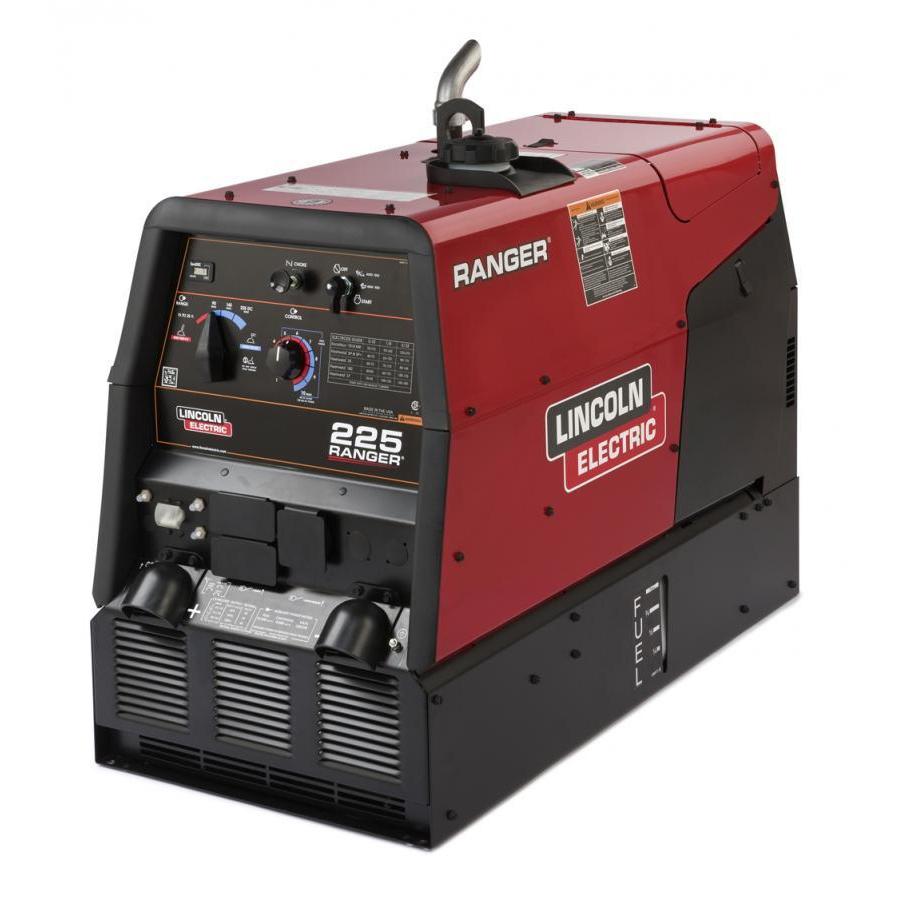

Lincoln Ranger 225 Eng. Driven Welder/Gen. Kohler Gas Eng. - K2857-1

Lincoln
K2857-1
5 In stock
$5,999.00
Currently 3-12 week lead time for all Lincoln items! Enclosed-Case Welder. A great choice for getting the job done! For construction contractors, maintenance crews, farmers or ranchers, the Ranger 225 does a variety of basic welding jobs. With 10,500 watts of peak AC generator power, it handles a variety of...
$5,999.00

Currently 3-12 week lead time for all Lincoln items!

Enclosed-Case Welder. A great choice for getting the job done! For construction contractors, maintenance crews, farmers or ranchers, the Ranger 225 does a variety of basic welding jobs. With 10,500 watts of peak AC generator power, it handles a variety of other jobs: lights, grinder, Lincoln Electric inverter, plasma cutter (separate air supply needed) or emergency power. At your service everyday!

Features:
  • Top-of-the-line OHV engine: Kohler Command 23 HP CH23S.

  • Three engine doors provide machine protection and easy service access.

  • Easy to Maintain Engine requires an oil change only every 100 hours and every 200 hours for the oil filter.

  • Electric Start Switch for easy starts. Switch combines OFF, START, and IDLER functions into one simple, compact, easy to use switch.

  • Circuit breaker protects battery ignition circuit.

  • Convenient truck or trailer mounting with front and rear holes in base.

  • Fuel level slots in both sides of the base with a decal to easily read the fuel level in the tank. Helps you avoid running out of fuel during critical jobs.

  • Large top fuel filler neck is easily accessed for refueling.

  • Oil drain valve (no tools required) with removable extension tube.

  • 435 cold cranking amps with the Group 58 battery for extra starting capacity in cold temperatures.

  • Oil dip stick, filters, spark plugs, etc. are easily accessed with left, right and top engine doors. Left and right doors are removable, if desired, for service.

  • Adjust exhaust direction with top-mounted 360_ rotatable exhaust muffler. Muffler made from aluminized steel for long life.

  • Red and black powder paint finish offers increased durability with added protection from rust and corrosion. Also ultraviolet resistant to better retain color and gloss.

  • Longer engine life, reduced noise emissions and greater fuel economy with automatic engine idler.

  • Conveniently located engine maintenance label under top engine door.

  • Automatic engine shutdown protection for low oil pressure.

  • Reliable start-up with Group 58 battery with 435 cold cranking amps.

  • Dependability and long life aided by all-copper windings in rotor and stator with high quality insulation.

  • Manufactured under a quality system certified to ISO 9001 requirements.

  • Canadian Standards Association (CSA) certified.

  • Three-year Lincoln warranty (parts and labor) on welder. (Engine is warranted separately by the manufacturer.)

  • Backed by Lincoln Electrics Service Parts Commitment We will ship in-stock parts within 24 hours of receipt of the order to anywhere within the U.S.

Arc Performance:
  • Smooth DC welding output for a broad range of stick electrodes, such as Lincoln Excalibur 7018 (AWS E7018) and Fleetweld 5P+ (AWS E6010). Also capable of MIG, Flux-Cored, and TIG welding.

  • Choose DC(+) for a deep penetrating arc or DC(-) for less penetration on thin sheet metal.

  • Rated 225 amps/25 volts/40% duty cycle and 210 amps/25 volts/100% duty cycle for CC and 200 amps/20 volts for CV. All rated outputs at 104¡;F (40¡;C).

  • Simple Output Range Selector can be used to select one of three amperage ranges with generous overlap for Stick/TIG welding, or one Wire Feed welding range.

  • Fine adjustment control allows you to dial in just the right welding output for each application.

  • Add productivity with self-shielded flux-cored CV wire welding. Compatible with Lincoln LN-25 PRO and LN-15 Across-the-Arc wire feeders for use with a variety of wire electrodes.

  • Expand to AC TIG welding with optional Precision TIG 225 or Invertec V205-T AC/DC (powered by AC generator power from the Ranger 225) for aluminum and other alloy welding.

  • Arc Gouge with up to 5/32; (4.0 mm) carbon electrode.

  • Easy to maintain - Engine requires an oil change only every 100 hours and every 200 hours for the oil filter.

AC Generator Performance
  • 10,500 watts peak AC generator power. Most peak power in its class. Use for motor starting.

  • 9,000 watts continuous AC generator power. For high capacity needs such as a back-up generator, powering a Pro-Cut plasma cutter, an Invertec inverter welder or a Precision TIG welder. Also for lights, a grinder or other power tools.

  • Delivers up to 38 amps from the single 120V/240V full-KVA receptacle. Standard circuit breakers protect the machine as well as your power tools.

  • Delivers up to 40 amps from two 120V duplex receptacles.

  • Get two tools in one when you use the Ranger 225 as a power generator for emergency standby power, and/or for welding.

  • Optional GFCI (Ground Fault Circuit Interrupter) Kit available for additional protection from electrical shock.

  • Simultaneous welding and AC generator power power up to 3,950 watts while welding at 145 amps (AC generator power is reduced when welding simultaneously per table below).

  • Take on more jobs - plug in an optional Pro-Cut 55 plasma cutter to cleanly cut metal.
