Millermatic 141 MIG Welder 907612
$1,045.00
The Millermatic® 141 MIG welder is a 140 amp portable MIG welder that runs on standard 120 volt household current. The 141 features Auto-Set, which eliminates the guesswork of setting voltage and wire feed speed for your MIG welding application. Simply select the material thickness and wire diameter while the...
The Millermatic® 141 MIG welder is a 140 amp portable MIG welder that runs on standard 120 volt household current. The 141 features Auto-Set, which eliminates the guesswork of setting voltage and wire feed speed for your MIG welding application. Simply select the material thickness and wire diameter while the welder is in the Auto-Set mode, and you are ready to weld. The Auto-Set control automatically sets your welder to the proper parameters. It is available when welding mild steel with solid wire and only works with .024 and .030 solid wires and C25 shielding gas (75% Argon, 25% CO2).
Manual MIG welding control is also available for those welders who wish to fine tune their welding arc. Manual welding mode must also be used when MIG welding aluminum, stainless steel or for flux-cored welding. The parameter door chart lists voltage and wire feed speed settings options.
ProcessesMIG (GMAW)
Flux Cored (FCAW) (gas and self-shielded)
Applications
Light Industrial Applications
Light Fabrication
Maintenance and Repair
Auto Body
Farm/Home
Features:
Auto-Set™ automatically provides the right settings to weld mild steel while infinite voltage control allows the flexibility to manually set your own parameters.
Set the wire diameter, a blue light shows Auto-Set is activated
Dial in the thickness of what you are welding
Start welding with the exact parameters you need!
Angled cast-aluminum drive system with calibrated tension knob creates consistent feeding and easy setup.
Quick Select™ drive roll makes setup quicker by offering three grooves, two for different size solid wire and a third for flux-cored welding wire.
Auto Spoolgun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
Smooth-Start™ provides a smooth, spatter-free start. It is the best-starting machine in the small MIG machine category.
Thermal overload protection shuts down unit and activates the over temperature light if airflow is blocked or duty cycle is exceeded. Automatically resets when unit cools.
Uses 4 inch or 8 inch (102 or 203 mm) spools and can be set up to weld with .024 to .030 inch (0.6 to 0.8 mm) solid wire and .030 to .035 inch (0.8 to 0.9 mm) flux-cored wire.

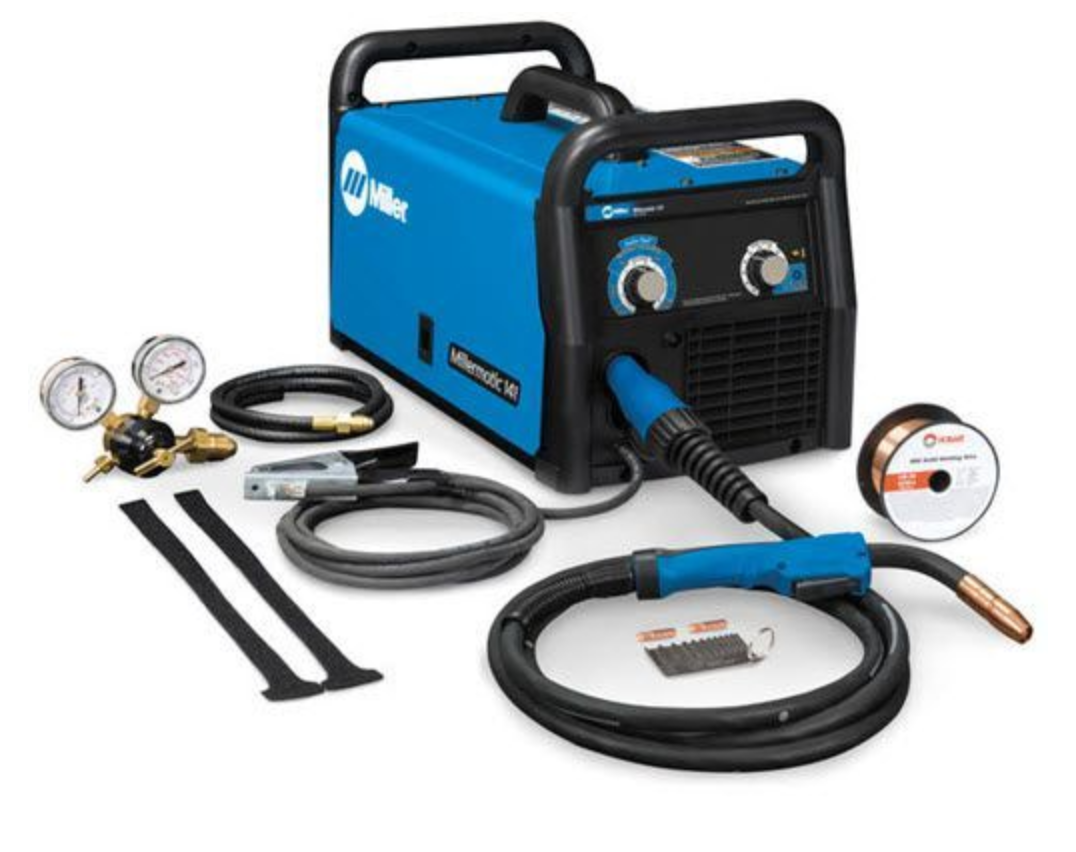

Comes complete with:
Millermatic® 141 MIG Welding Power source
6.5-ft. (2 m) power cord with plug
10-ft. (3 m), 100 amp MDX™-100 MIG gun and cable assembly
10-ft. (3 m) work cable with clamp
Argon - Argon/CO2 mix flow gauge regulator with gas hose
Hobart® spool of .030-in. (0.8 mm) solid wire
Two contact tips for .030-in. (0.8 mm) wire
Quick Select® drive rolls for .024-in. (0.6 mm) or .030/.035-in. (0.8/0.9 mm) solid wire, and .030/.035-in. (0.8/0.9 mm) flux-cored wire
Material thickness gauge #229 895
Velcro cord wraps
Manual MIG welding control is also available for those welders who wish to fine tune their welding arc. Manual welding mode must also be used when MIG welding aluminum, stainless steel or for flux-cored welding. The parameter door chart lists voltage and wire feed speed settings options.
Processes
Applications
Features:
Set the wire diameter, a blue light shows Auto-Set is activated
Dial in the thickness of what you are welding
Start welding with the exact parameters you need!
Comes complete with:
